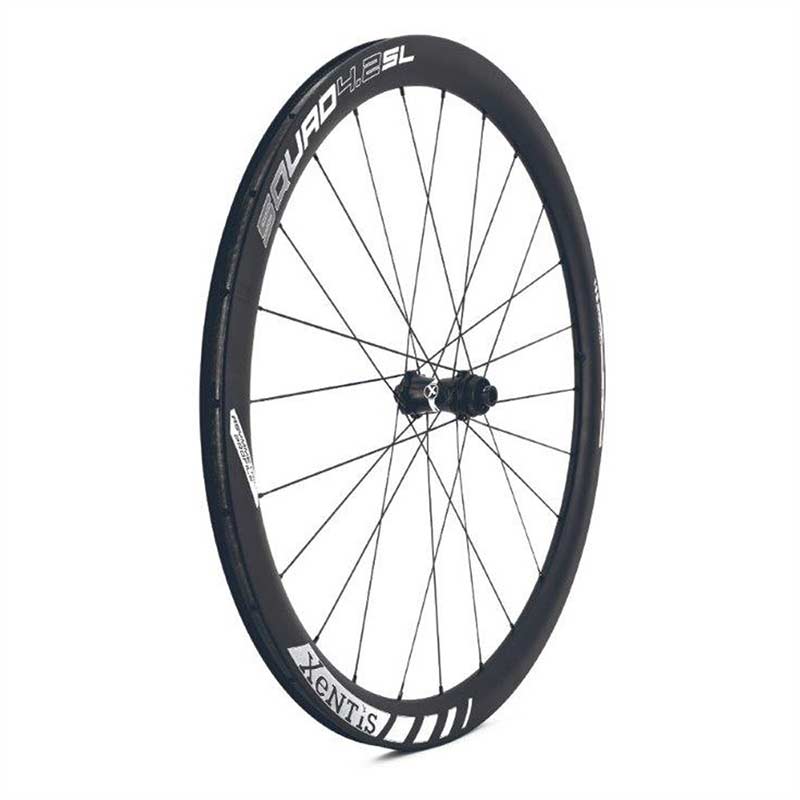

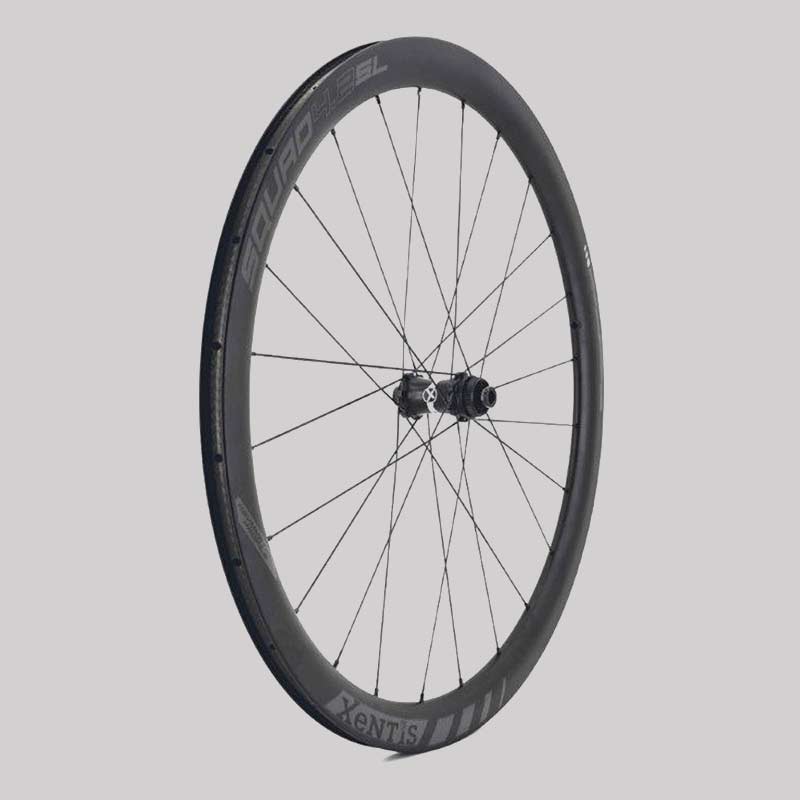

XeNTiS SQUAD 4.2 SL Tubeless Ready Disc Brake
The rim has a coated carbon-UD surface finish and makes the heart of every bike lover beat faster. Combined with Sapim CX-Ray spokes and the XeNTiS XH004 Centerlock® quality hubs, developed in-house, the result is a lightweight in the disc brake sector and yet ensures high reliability in terms of mileage. An additional benefit is the asymmetric rim profile, which provides increased lateral stiffness during acceleration and braking.
Design matt black
Carbon fiber UD-Carbon
Dimension 622 x 18C tubeless ready
Tyres clincher 23-40mm
Max. tyre inflation pressure 8,8 bar (23-622) /127 psi in (23-622) 7,0 bar (26-622) /101 psi in (26-622) 6,0 bar (28-622) /87 psi in (28-622) 5,0 bar (30-622) / 72 psi in (30-622) 4,5 bar (33-622) / 65 psi in (33-622) 3,5 bar (40-622) / 50 psi in (40-622)
Brake surface none

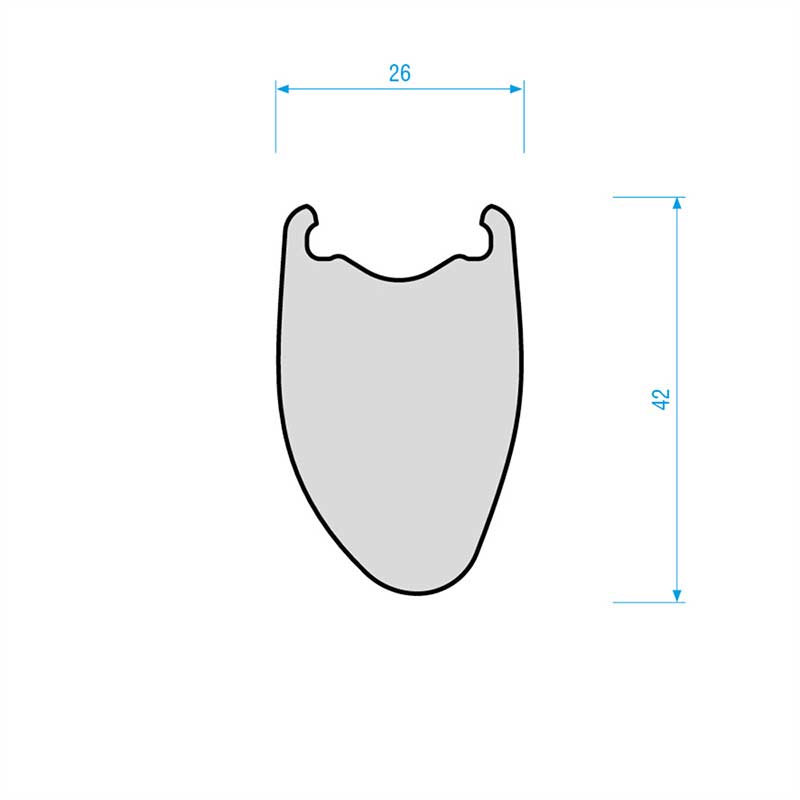

Rim depth 42mm
Rim width 26mm
Spokes count 24 / 24
Hub front XeNTiS XH004; 12-100mm, Center Lock®
Hub rear XeNTiS XH004; X12-142mm, Center Lock®
Compatibility Shimano / SRAM 10/11-Speed, SRAM XDR 12-Speed, Campagnolo 11/12-Speed
Accessories XeNTiS warranty card, XeNTiS Wheelbag, XeNTiS Rim tape, XeNTiS quick release
Weight per set 1.299g
Max. combined weight 110kg
